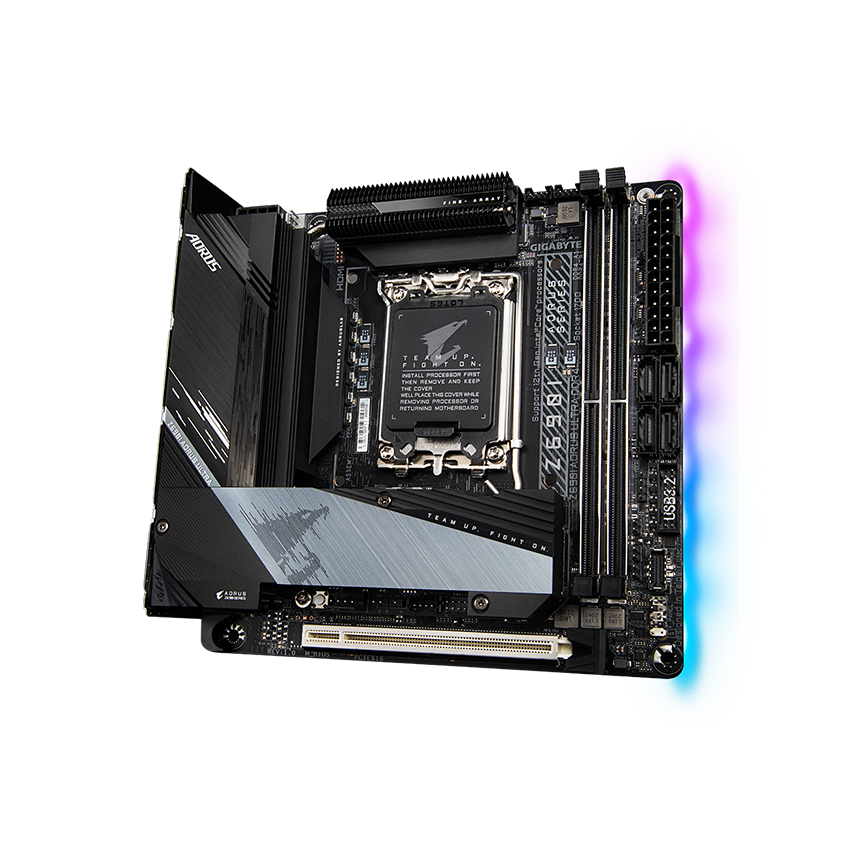

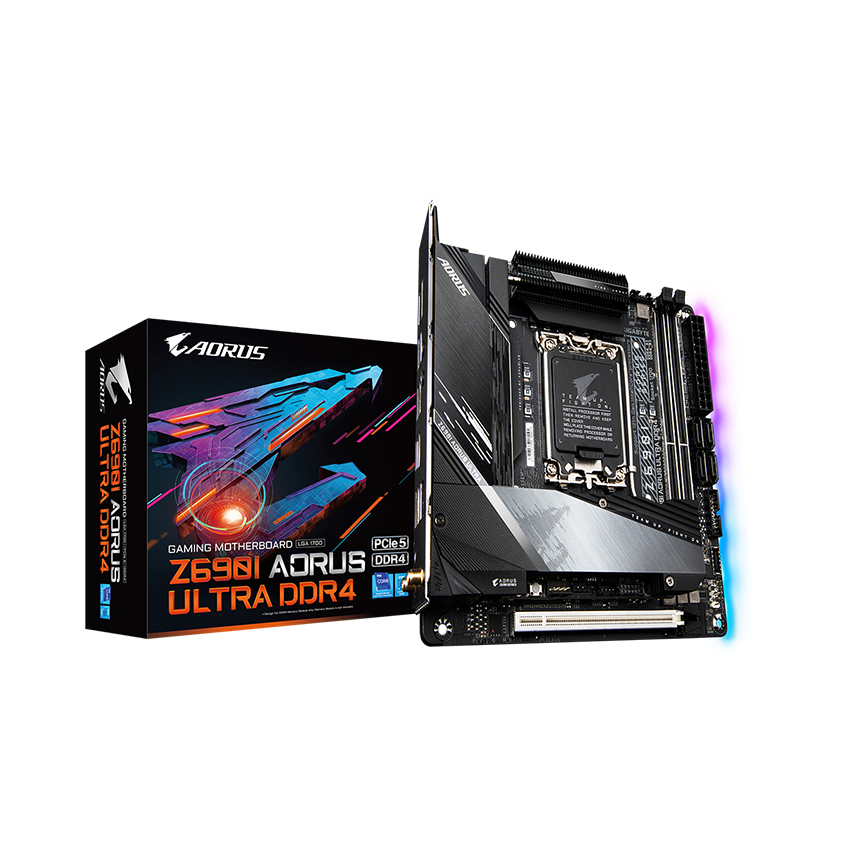

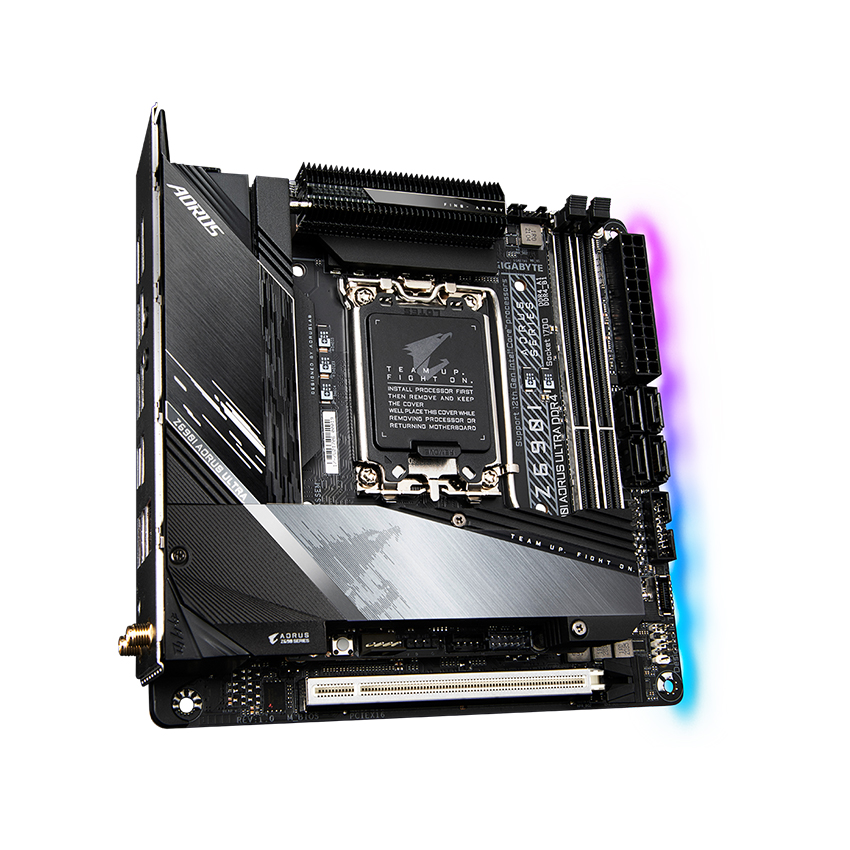

MAINBOARD GIGABYTE Z690I AORUS ULTRA DDR4

7,650,000

  • Chipset: Intel Z690
  • Socket: LGA 1700
  • Số khe RAM: 2 (DDR4)
  • Kích thước: iTX
  • Tích hợp sẵn Wifi & Bluetooth

Còn hàng

Categories: , Từ khóa:

Mô tả

Thông số kỹ thuật chi tiết Mainboard Gigabyte Z690I AORUS ULTRA DDR4 (Intel Z690, Socket 1700, iTX, 2 khe Ram DDR4)





CPU LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors

L3 cache varies with CPU

Chipset Intel® Z690 Express Chipset
Memory DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

1 x DisplayPort port, supporting a maximum resolution of 5120×2160@60 Hz

Audio Realtek® ALC4080 CODEC

Support for DTS:X® Ultra

High Definition Audio

2-channel

LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6 AX201:WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.2

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots 1 x PCI Express x16 slot, running at x16
Storage Interface CPU:1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready

USB Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the USB headers on the front of GC-Z690I BTB PLUG

Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x external power connector(Note 1)

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1))

1 x addressable LED strip header(Note 1)

1 x RGB LED strip header

2 x M.2 Socket 3 connectors(M2A_CPU(Note 2)/M2P_SB(Note 1))

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header(Note 1)

1 x reset button(Note 1)

1 x reset jumper

1 x Clear CMOS jumper

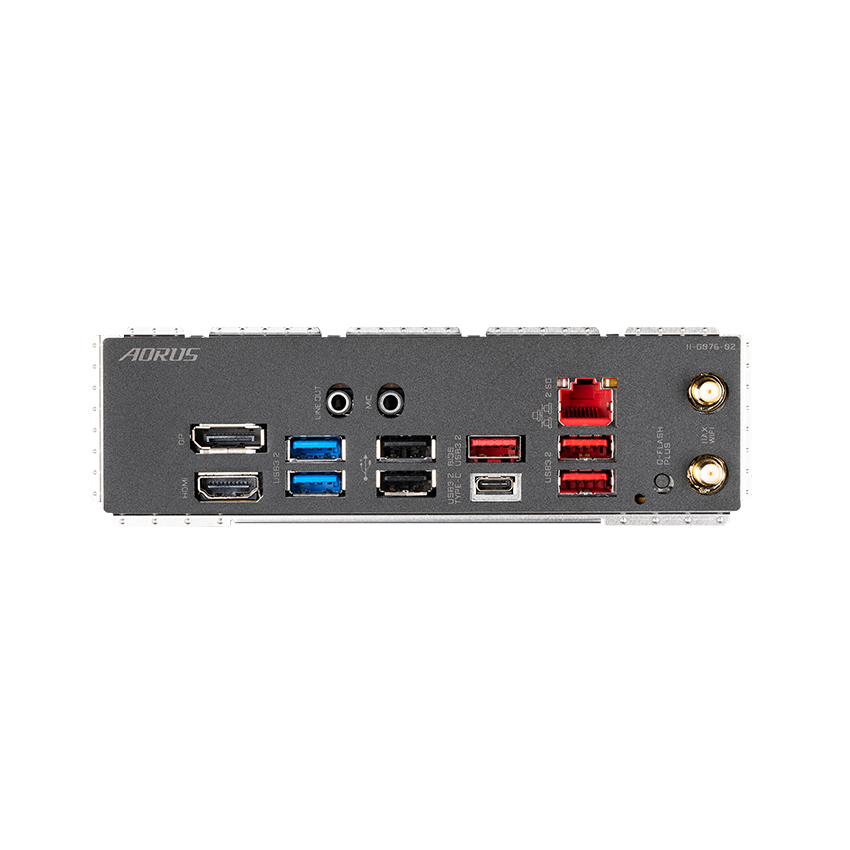

Back Panel Connectors 2 x SMA antenna connectors (2T2R)

1 x DisplayPort

1 x HDMI port

1 x USB Type-C® port, with USB 3.2 Gen 2×2 support

3 x USB 3.2 Gen 2 Type-A ports (red)

2 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

2 x audio jacks

I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install
Bundled Software Norton® Internet Security (OEM version)

cFosSpeed

Operating System Support for Windows 10 64-bit
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
